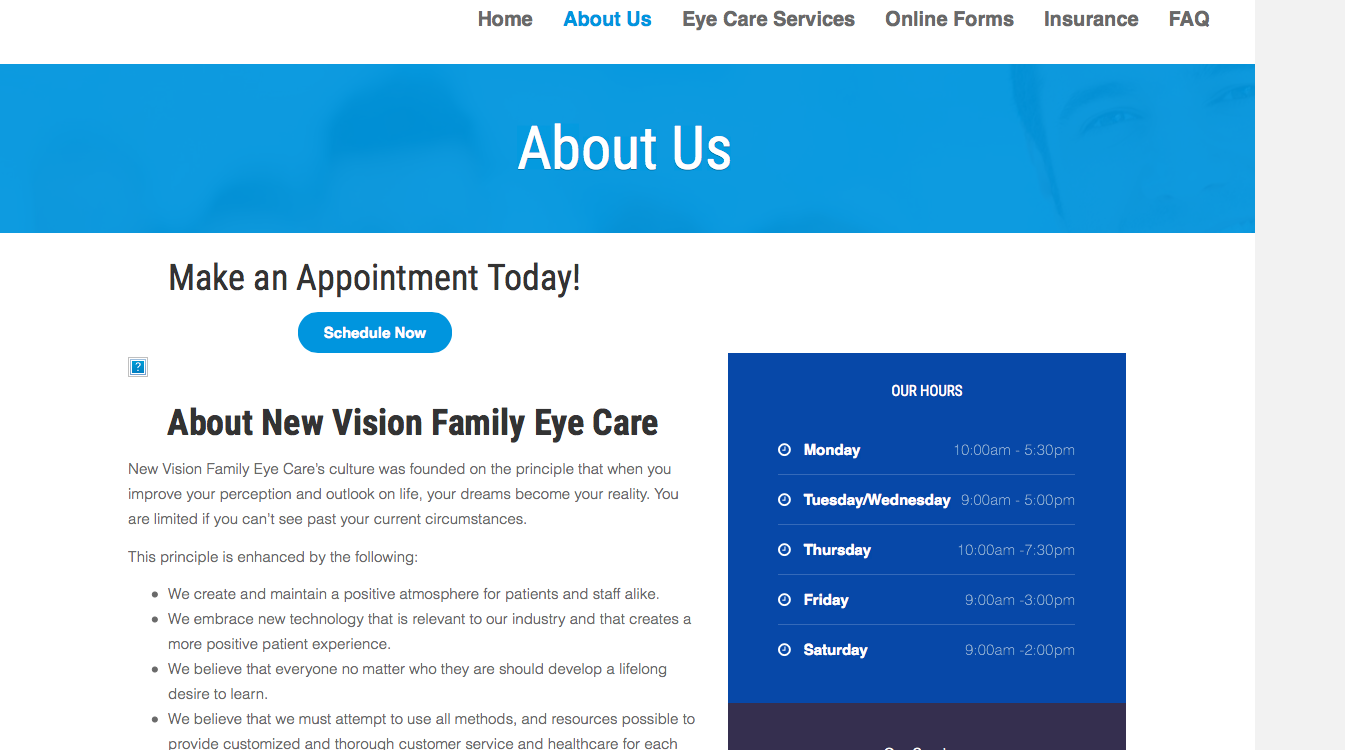

When I view my website on my iPhone or Macbook Air I see a broken image icon at the top of the article area. I do not see this icon on my PC. Please see attached.

http://www.newvisioneyes.com/joomla/index.php/about-us

---

Attachments:

1.

[jswin05 Friend jswin05Join date: August 2016Posts: 8Downloads:12Uploads:2]

#974630

Correction: the icon shows up in the Internet Explorer browser on my PC as well. I just doesn’t show up on Firefox. I haven’t tried Chrome.

[pavit Moderator pavitJoin date: September 2007Posts: 15749Downloads:199Uploads:2274 Thanks: 417 Thanked: 4028 times in 3778 posts]

#974631

Hi there

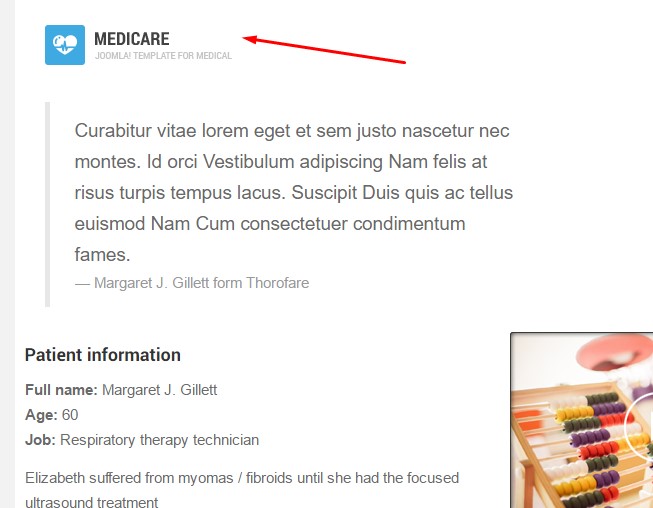

That div is containing the website logo for article menu item type ( look at image below ) If you want to add an image into article top then you will need to upload logo.png in this folder /templates/ja_medicare/images/logo.png

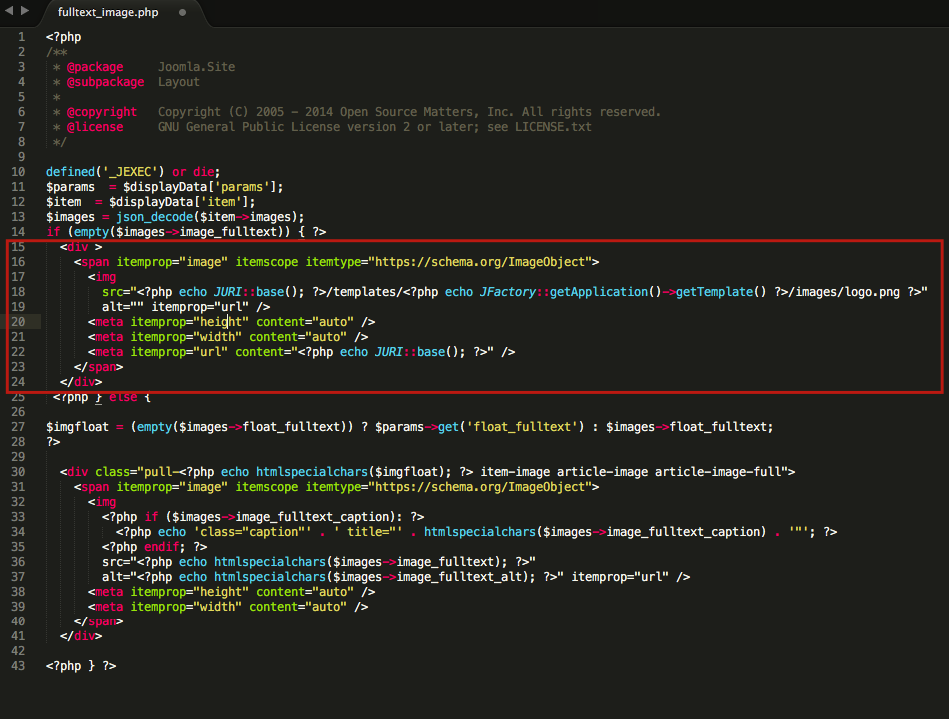

If you want to remove it then delete the php block showed below in this file /templates/ja_medicare/html/layouts/joomla/content/fulltext_image.php at line 15 to 24

  <div >
    <span itemprop="image" itemscope itemtype="https://schema.org/ImageObject">
      <img
        src="<?php echo JURI::base(); ?>/templates/<?php echo JFactory::getApplication()->getTemplate() ?>/images/logo.png ?>"
        alt="" itemprop="url" />
      <meta itemprop="height" content="auto" />
      <meta itemprop="width" content="auto" />
      <meta itemprop="url" content="<?php echo JURI::base(); ?>" />
    </span>
  </div>

---

Attachments:

1.
2.

[jswin05 Friend jswin05Join date: August 2016Posts: 8Downloads:12Uploads:2]

#974634

Awesome! That worked! I found this area in the Inspector but I couldn’t figure out which php file it came from! For my future knowlege, once I identified the offending html using my browser’s inspector, what should I have done to find the correct php file?

Thanks!

[pavit Moderator pavitJoin date: September 2007Posts: 15749Downloads:199Uploads:2274 Thanks: 417 Thanked: 4028 times in 3778 posts]

#974636

jswin05 wrote:

what should I have done to find the correct php file?

You cannot find it with inspector, you should know website file structure and how T3 framework behaves with custom layouts , in this case the com_content overrided layout with fulltext_image.php file

Regards
